Weiwei garden machine mulching mobile wood shredder chips making diesel electric forestry wood working chipper

FOB Reference Price:Get Latest Price
$750.00 - $2,800.00 / Sets | 1 Set/Sets (Min. Order)
Production Capacity:
15-18.5KW
Model Number:
MPJ600
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 14 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Dimension(L*W*H):
1500*570*1050mm
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail
Condition:
New
Type:
Wood Chipper
Use:
Chipping Wood
Power Type:
Diesel, electric,pto
Place of Origin:
Henan, China
Brand Name:
WEIWEI
Weight:
380kg
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas, Online support, Overseas service center available, Video technical support
Name:
Weiwei wood chipper machine
Usage:
Wood Shredder Cutting Wood Branch logs chipper
Engine:
15-18.5KW
Color:
Customized
Application:
Cutting Forestry Garden Wood Log Waste
User manual:
Log Splitter User Manual
Capacity:
2t/h
Power:
Tractor PTO Driven ,Electric motor,Diesel
Cutting diameter:
180*150mm
Supply Ability
Supply Ability:
500 Set/Sets per Week
Packaging & Delivery
Packaging Details
Wooden Packing Size :1550*620*1070mm
Weight:380kg
Maximum of 25 sets in 20GP
HS code :8465960000
FOR WEIWEI WOOD CHIPPER
Port
Qingdao Shanghai Tianjin
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 14 To be negotiated
Video Description
Product Description of Wood chipper

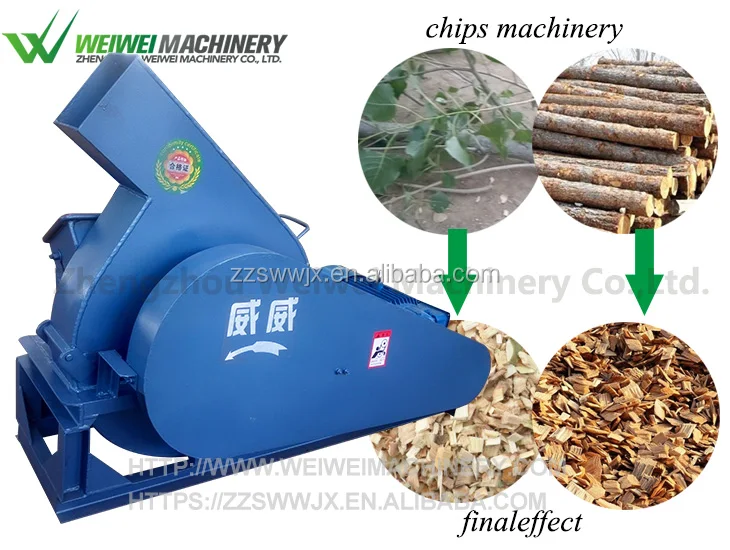

Weiwei garden machine mulching mobile wood shredder chips making



Model

Qty of blade(blade )

Feeding Hole Size(mm)

Cutter disk diameter(mm)

Capacity (t/h)

Main shaft speed(r/min)

Motor (kw)

Dimension (mm)

MPJ-420

3

155*150

424

1

650

11

1200*500*800

MPJ-600

3

180*150

600

2

600

18.5

1500*570*1050

MPJ-800

4

200*195

735

5

550

30-37

1850*730*1240

MPJ-950

4

230*250

830

8

550

45-55

1900*820*1500

MJP-1150

4-6

300*330

1000

12

600

55-75

2650*1150*1800

MPJ-1410

4

400*400

1160

15-16

600

90-110

2900*1400*2350



Parameter:

Model: MPJ-600

Capacity: 2t/h

Power:18.5kw

Spindle speed :600r/min

Blade number: 3pcs

Feeding hole size:180*150mm (max size of the cutting material )

Product size:1500*570*1050mm

Voltage:  can be customized according to customer's requirements

1.The wood chipper machine equipment can cutting wood logs, small diameter wood and brushwood,Bamboo, straw and other raw materials.



3.The wood chipper machine is widely used in garden,power plant fuel, paper mill, artificial board factory and medium density fiber plate and other industry prior to the ideal production equipment.


Application & Advantage



This disc wood chipper compact structure, reasonable layout, convenient installation, convenient operation and maintenance, high production capacity; cuttinglogs, high quality wood, and wood chip length can be adjusted freely within the prescribed limits, is the advanced disc wood chipper.

Final Effect and Engine

wood cutting machine production to adapt to a wide range, not only is the wood can also be crushed with other materials: textile, papermaking, pulping, wood-based panel wood powder, wood, skin, veneer, bamboo, wood, corn stalk, cotton stalk, reed, bark, charcoal, activated carbon, cellulose, refined cotton, leather, sheepskin, plant roots, stems, leaves, flowers, fruit, various edible fungi such as hundreds of difficult characteristics of material processing, chemical industry, build material.

Principle of operation

The raw material is fed into the inlet when the wood comes into contact with the cutting blade,it was cut with the high speed rotation of the cutter head. The cut wood chip is sent out of the high speed steam generated by the blade on the cutter blade in the cutting chamber
