Chaff cutter for ground nut stalks

FOB Reference Price:Get Latest Price
$1,800.00 - $2,600.00 / Set | 1 Set/Sets for motor chaff cutter (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Brand Name:
WEIWEI
Model Number:
9zp-6.5
Type:
Chaff Cutter
Voltage:
380V
Power:
7.5kw
Dimension(L*W*H):
2147*1600*2756mm
Weight:
420 kg
Certification:
CE ISO9001
Name:
Grass cutting machine for sale
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
500 Set/Sets per Week for motor chaff cutter
Packaging & Delivery
Packaging Details
International standard wooden case
Port
Qingdao Shanghai
Lead Time :
15 days after getting payment

chaff cutter for ground nut stalks



Applicable Scope

chaff cutter for ground nut stalks is used to cut (dry) corn straws, rice straws and other crop straws as well as pastures and applicable to cattle station of at most 100 cattle or sheep station of at most 300 sheep.



Main Features

chaff cutter for ground nut stalks is made of steel rack with small volume and light weight to move conveniently.

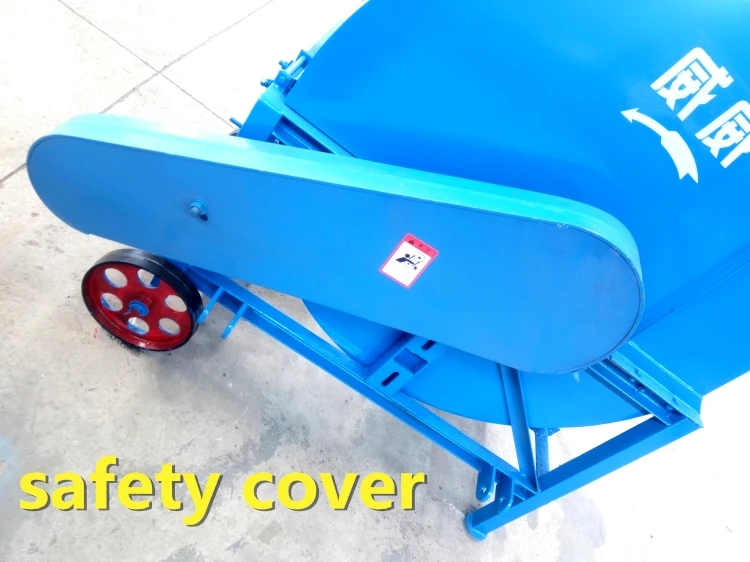

Cattle feed forage chopper is equipped with a safety device to prevent blade jamming, thus ensuring safety and reliability.



Universal coupling is used as the grass roller transmission shaft to provide compact structure, flexible operation and convenient disassembly.There are multiple power choices such as motors, diesel engines and tractors, so it is especially suitable for regions in lack of power.



Blades are made of quality steels by special process to become very wear-resisting; high-strength bolts are used for connection to provide safe and reliable operation.



The enclosure is made of thickened steel plates by continuous welding and adopts integrated die forming and pressed anti-fake brand to provide beautiful appearance and durable services.



The main technical parameters for 9ZP-6.5 chaff cutter for ground nut stalks





items

9ZP-6.5A

9ZP-6.5A pull-type

matched power

motor

power(kw)

7.5

——

rotary speed(r/min)

1440

——

tractor or diesel engine

drive type

belt drive

power-output shaft

power(hp)

15-20

power-output shaft(r/min)

——

540

tractor hitch type

——

drag bracket



external dimension

transportation dimension: length*width*height (mm)

755*1393*1585

using dimension:

length*width*height (mm)

2147*1600*2756

3110*1500*2866

machine weight(kg)

420

460

cutter head speed(r/min)

650

650

blade quantity(piece)

3

power transmission shaft quantity

——

6

triangular belt

B2150

3belts

B1400

3 belts

The performance indicators for 9ZP-6.5 chaff cutter



items

data

productivity

(cutting length 16mm, continuous and average feeding conditions )

green corn straw(78% moisture content)

6t/h

dry corn straw(78% moisture content)

2.5t/h

dry straw(78% moisture content)

2.5t/h

dry wheat straw(78% moisture content)

2.5t/h

dry alfalfa(20% moisture content)



2.5t/h

cutting length

3 moving blades

12, 18, 25, 35mm

4 moving blades

9, 14, 19, 27mm

material blowing distance

5-8m
