WEIWEI BRAND tree crusher machine wood mill multifunctional

FOB Reference Price:Get Latest Price
$360.00 - $800.00 / Set | 1 Set/Sets (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Agro-Forestry Monitoring System
Wood Mill Machine
Power Type:
Electric, Diesel ,Gasoline
Production Capacity:
Place of Origin:
Henan, China
Brand Name:
Model Number:
WEIWEI Wood Mill Machine
Qty of cutter blade:
Feeding port:
Two feeding inlet
Feeding inlet size:
Cutter disk diameter:
Main shaft speed:
Raw material:
Logs ,tree branch ,straw
After-sales Service Provided:
Engineers available to service machinery overseas
12 Months
Supply Ability
Supply Ability:
500 Set/Sets per Week
Packaging & Delivery
Packaging Details
Wooden case packing size:1200*550*750mm
Weight :150-400KG
Maximum of 180 sets in 55GP
HS CODE :8465990000
Qingdao Shanghai
Lead Time :
2-15 days after getting payment
Product Description

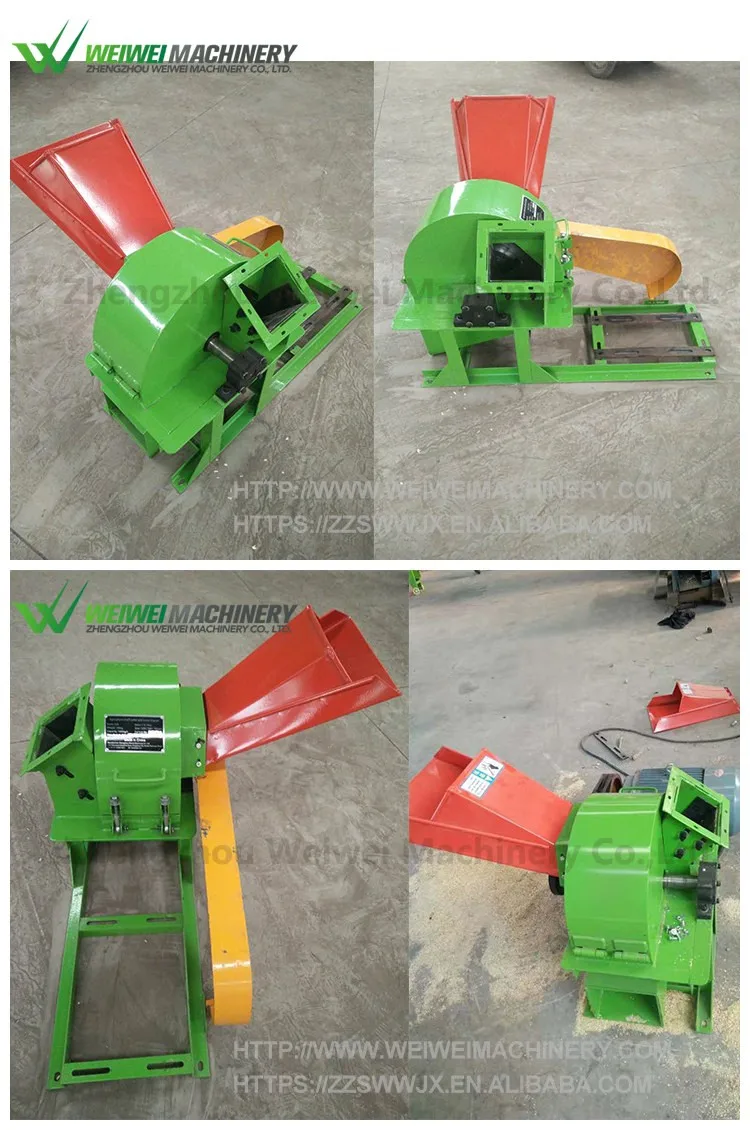

WEIWEI BRAND tree crusher machine wood mill multifunctional

We are a factory with more than 30 years of experience in agricultural and wood working machine manufacturing, Survival and Development by quality and honesty .

we can provide a variety of specifications and requirements of agricultural machinery products, please tell me your needs. We will provide or customize the most suitable products for you, and ensure it’s good quality and low price.


Product details

NameWEIWEI Wood Mill Machine
Qty of cutter blade4
Feeding portTwo feeding inlet
Feeding inlet size160*155mm
Cutter disk diameter424mm
Main shaft speed2600r/min
Raw materialLogs ,tree branch ,straw
ServiceOEM ODM
Product Keywordstree crusher machine,wood mill machine,multifunctional wood crusher


Product Display





Cutter disk diameter (mm)


Main shaft speed




Blade (moving blades)

4 pieces

Blade size (mm)




Feeding inlet size(Diameter of raw material )


Power equipment

Electric motor ,gasoline engine ,diesel engine, trailer mounted

This wood grinder can be converted into double feed ports, widely range of applications. One feed inlet can be fed into logs, plates, bamboo and other raw materials, and another wide feed inlet can enter twigs and stalks. Palm leaves, etc.

According to the different size of screen mesh,the machine can cutting and grinding different effect.


Double feeding port

This machine can be customized double inlet, with more extensive scope of application, rectangular inlet is suitable for cutting wood, bamboo and other wood materials, the  wide inlet suitable for cutting scrap, straw . the user is more sensible choice.




The production of wood powder (sawdust) is a kind of special equipment, widely used in Garden planting fertilizer ,fuel,granulator(pellet machine) powder, planting flowers ,paper-making, edible fungus, mechanism charcoal, sawdust board, particle board, high density board, preparing process of MDF production and single wood powder (sawdust) production base of raw materials,can cutting mainly logs, branches, bamboo, straw and so on.





Thick sieve

According to different users and applications, users can customize different diameter of the sieve, open the cover, the user can replace the sieve, simple and convenient operation, provide more support to the use range of users.



Moving blade

The cutting blade adopts high quality alloy cutting tools. The cutters are hard, wear resistant, cutting sharp, difficult to rust, corrosion resistant, and the service life is longer than the general steel cutting tools, the output of wood crusher is larger


Cutter head

The cutter is composed of thick steel plate and changed the original fragile, increase the service life of the machine, fan design is enhanced in the machine running speed of wood, wood from the machine speed and easy to sieve out the whole cutter head, smooth operation, regrinding.

Hammer blade

Hammer is made of carbon structural steel  ,multiple impact crushing the w


ood , then improve the broken rate, user can use both sides of the hammer, one side broken, the user can replace the hammer hammer, but can change at the same position, can not be exchanged, so as not to affect the dynamic balance of the machine,  double-sided use reduce the use cost.


The main part of the machine -dynamic balance test

The main part of the machine is through the dynamic balancing equipment, each machine's weight error range is less than 15g, so that the machine can run smoothly,reduce noise, improve production efficiency, prolong the service cycle, low cost, high yield, is the mature technology of wood processing machinery


Double buckle


It is convenient for users to check and change the internal movement parts at any time, and the Double buckle is closely linked. It also provides safety protection, and the operation is simple and convenient .


Power and Principle


The machine working principle:

The blade cutting and high speed airflow impact crushing, collision of double functions, and can simultaneously complete small size material sorting process. In the blade cutting and grinding process, the rotor generates a high speed airflow, with the blade cutting direction of rotation, the material in the air flow , and make the material  under repeated impact crushing, accelerated material crushing rate.



Our Factory

Our company is a professional manufacturer with 30 years experience in agricultural machinery manufacturing .factory was established in 1980, plant area of more than 10 thousand square meters, more than 200 staff and more than 20 technical personnel to ensure product quality and delivery.


Our company is nation-appointed professional agricultural machinery manufacturer by Department of Agriculture .  our main products have three categories: agricultural processing machinery, woodworking machinery, animal feed processing machinery , including corn thresher  rice and wheat, rice mill, grain mill, wood shaving machine, wood chip machine, sawdust machine, biomass pellet machine ,hay cutter,feed mixer, feed mill, feed particle machine and other kinds of machinery.


Our factory is located in Xingyang, Zhengzhou city Henan province . located in plain agricultural province with large population, our company has richly endowed by nature in price : quality first, reputation first, customer first for the purpose of service, with high quality, factory direct price, Quickly won the market and customers, good customer feedback, we are the major domestic and foreign distributors long-term trusted manufacturers.


Packaging & Shipping


Standard export carton packing.


3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
